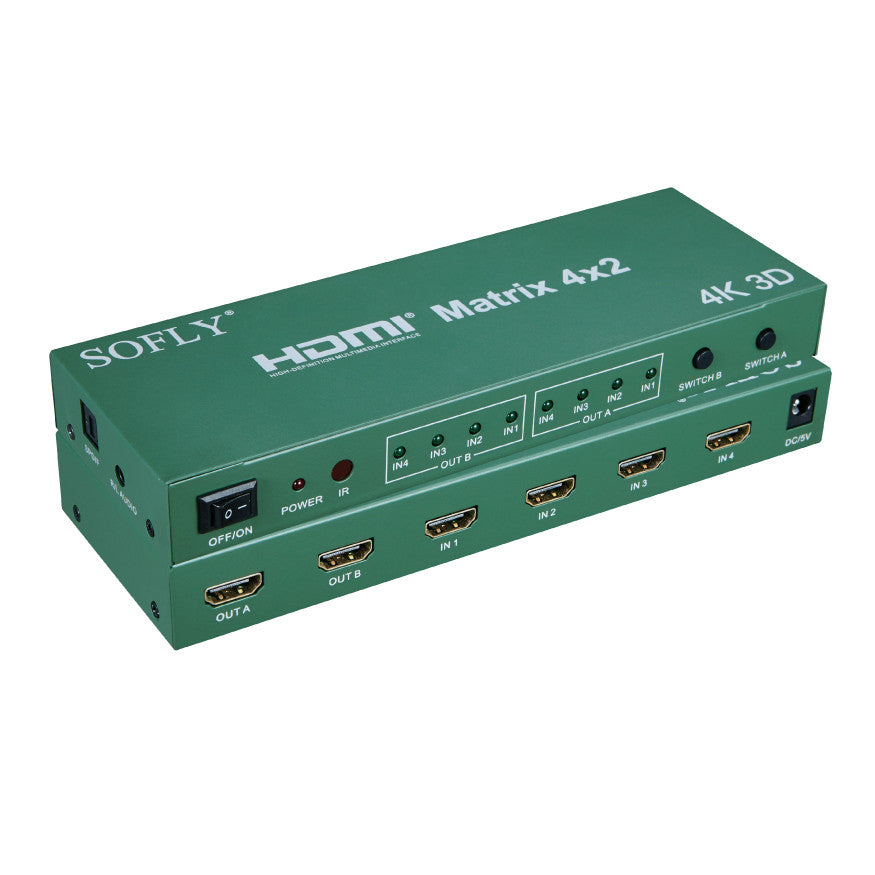

SOFLY HDMX4x2-US - 4x2 (V1.4)

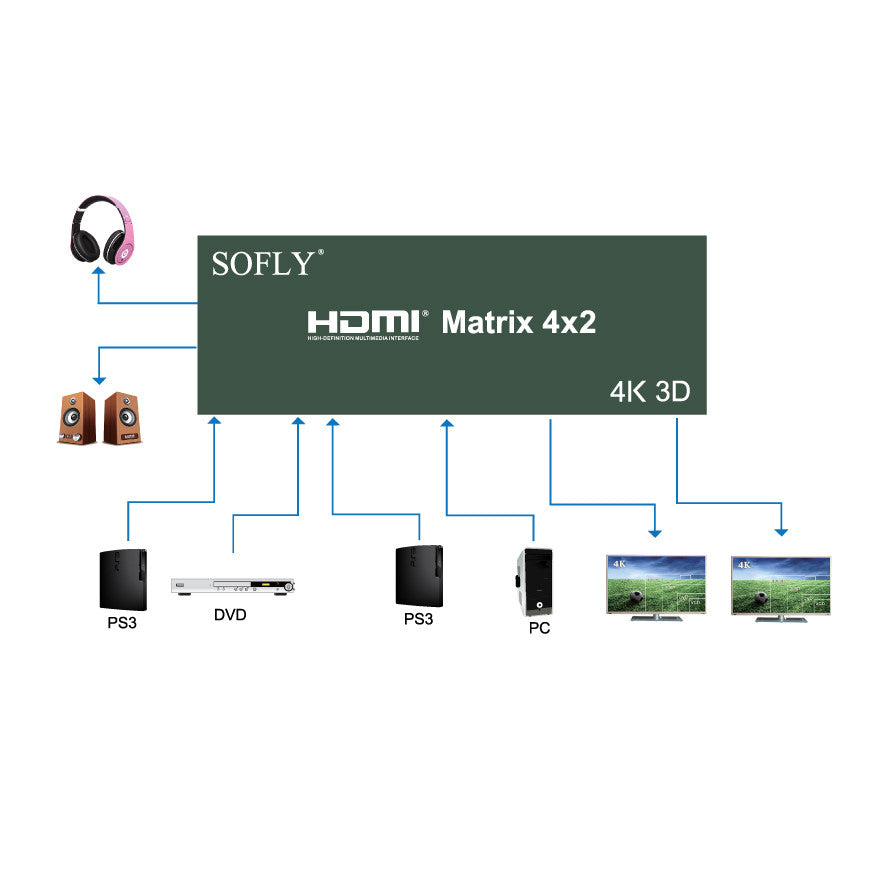

The HDMI matrix 4x2 can connect 4 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output. The matrix allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. And any output port can realize independent audio output by optical fiber or stereo head phone.
- Support HDMI 1.4b
- Support 3D video format
- Support highest resolution up to 3840x2160/30Hz
- Support 3.4G data rate and tmds clock up to 340Mhz
- Support deep color 8/10/12 bit
- When the resolution is 1080p and below, Support AWG26 HDMI standard cable input up to 10 meters length, output up to 15 meters length.
When the resolution is 4K, Support AWG26 HDMI standard cable input up to 8 meters length, output up to 8 meters length.
- Support 3.5 mm audio output and optical output
- Support four HDMI input to be switched or split two HDMI output.
- Support 5.1 audio channel
- Support single high definition display and multiple output HD signal sources, such as DVD players, A/V receivers and Set Top Boxes.
- Need DC5V/3A power supply
