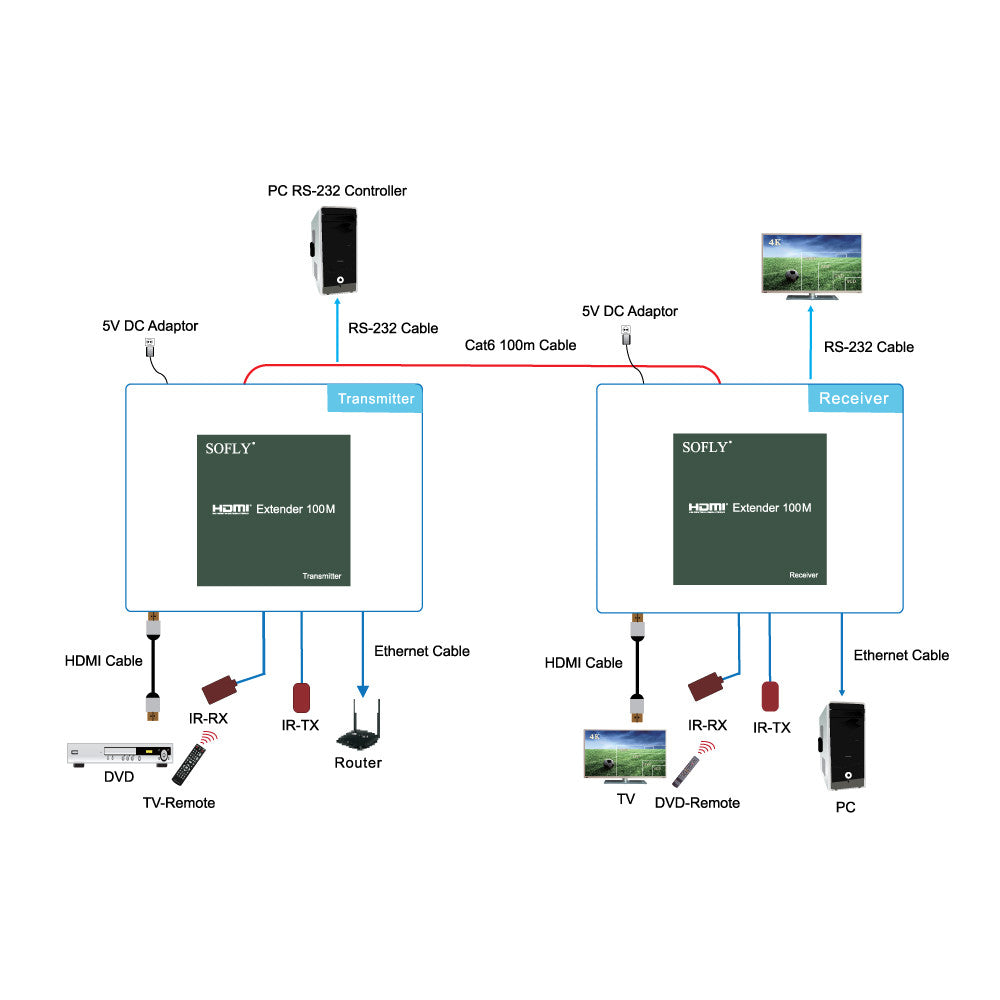

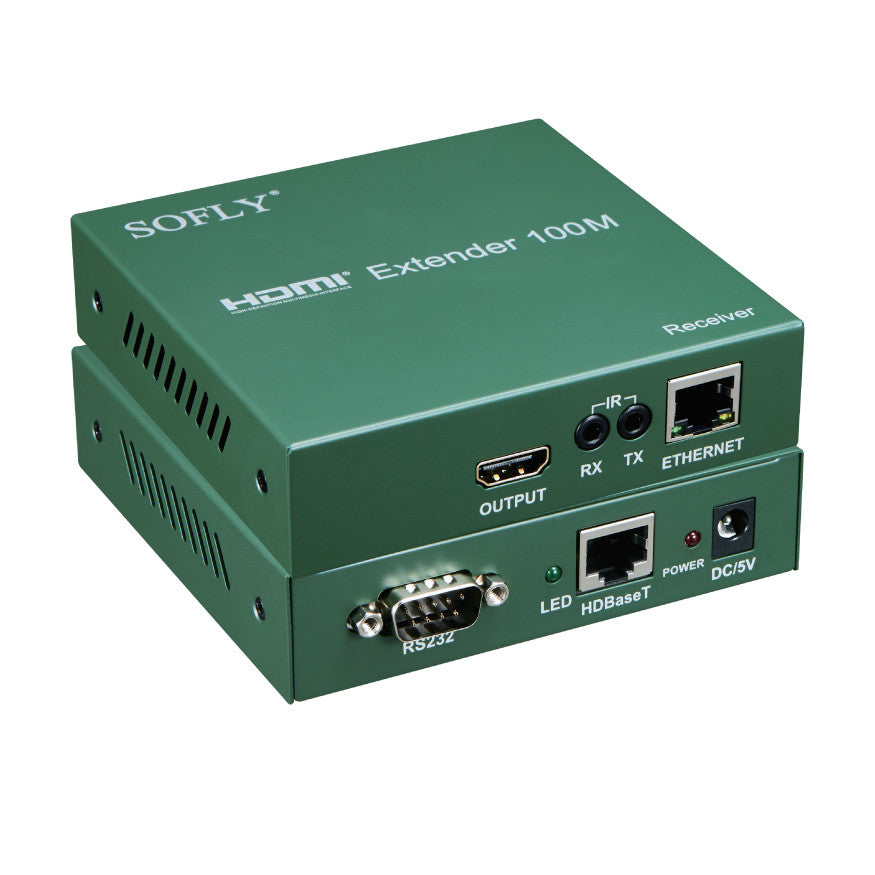

The HDMI RS232 CAT-6 Extender 100M is based on standard IEEE802.1Q Ethernet, transfer the HDMI signal via CAT-6 cable from the HD Audio & Video products (Blue-ray DVD, PS3, PC, STB) to HDTV/Projector. Supporting the highest resolution 4Kx2K (3840x2160); the max transmitting distance is100M; support HD BaseT, RS232 and Lan transmitting at the same.

Specification:

• Support HDMI 1.4 Version, HDCP 1.4
• Support 3D
• Support the highest resolution: 3840x2160/30Hz, (1080P/60Hz,1080i,720p)
• Support the Max transmitter distance:
• When input 1080P, the max distance is 100M
• When input 4Kx2K, the max distance is 70M
• Support voice rate :44.1KHz ,48KHz
• Based on IEEE 802.1Q Ethernet Standard
• Support bidirectional IR control, control the input resources devices and output displayer
• Support RS232 sources
• Power adaptor: DC5V/2A
• Power ：HDMI Transmitter: 3.5W HDMI Receiver: 5W
• Net Weight：360gX 2PCS
• Dimension (LxWxH): 107mmx107mmx28mm
